The product is mainly used in aeration systems for industrial wastewater treatment and municipal wastewater treatment, and demonstrates outstanding performance in wastewater with high suspended solids, high hardness, and strong scaling tendencies.

Technical Specifications
Model: RF-40-130 Cyclone Aerator
Service Area: 5–7 m²
Air Flow Rate: 0.35–1.5 m³/min
Oxygen Utilization Efficiency: >20%
The RF-40-130 Cyclone Aerator is designed to deliver efficient and uniform oxygen transfer while maintaining low energy consumption. It is particularly suitable for harsh wastewater conditions.

Key Features
Cyclone flow structure enables air to be discharged upward from inside the aerator, driving surrounding water upward simultaneously. In addition to aeration, this creates strong vertical circulation and mixing, eliminating oxygen-deficient dead zones throughout the aeration tank.
Multi-layer internal air cutters with a mushroom-head design shear the air into fine bubbles without increasing system resistance, ensuring thorough gas–liquid mixing and multi-stage air dispersion, significantly improving oxygen utilization efficiency.
Anti-clogging internal design allows stable operation under both continuous and intermittent operating conditions, achieving maintenance-free performance.
Large-channel flow design makes the aerator especially suitable for wastewater with high suspended solids, high hardness, and strong scaling potential, with a service life of over 10 years.
During air discharge and upward flow, the large-channel and mushroom-head structure generates strong negative pressure at the bottom of the aerator, lifting settled sludge from the tank bottom together with air and forming intensive mixing, effectively preventing sludge accumulation.

Applications and Advantages
The Cyclone Aerator is suitable for municipal wastewater, textile dyeing wastewater, chemical wastewater, coal chemical wastewater, petrochemical wastewater, papermaking wastewater, starch wastewater, alcohol wastewater, soy product wastewater, food processing wastewater, and various other wastewater treatment plants, for both new construction and retrofit projects.
For wastewater with high salinity, high oil content, high hardness, and strong scaling, the Cyclone Aerator offers significantly better performance than conventional aeration systems.
Existing aerators can be completely replaced with Cyclone Aerators without modifying the original main air pipelines, resulting in short installation time and reduced project duration.

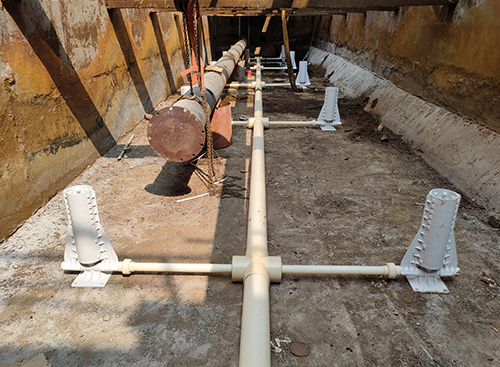

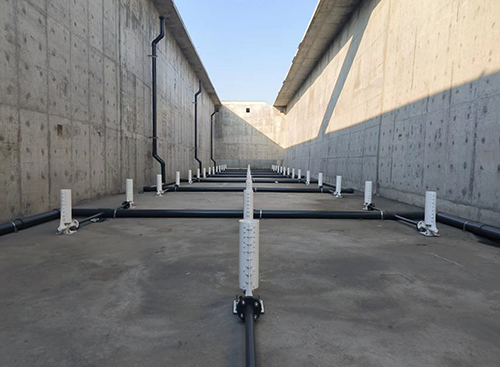

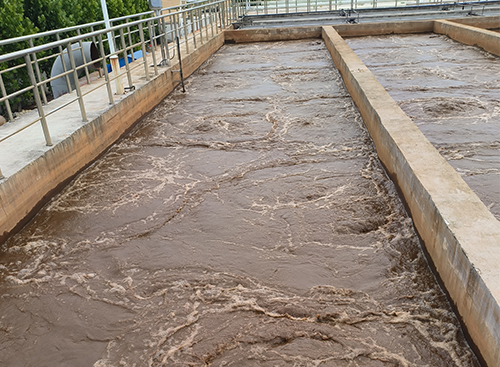

Installation and Aeration Performance
(Installation layout, operation diagrams, and performance photos can be provided upon request.)
