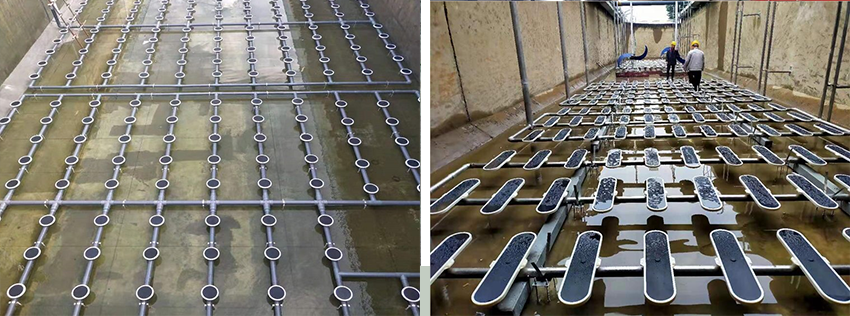

Disc diffusers have a circular shape, while panel diffusers feature a flat, elongated, skateboard-like structure. Both types generate fine bubbles through micro-perforated membranes to achieve efficient aeration.
I. Role of Aeration in Wastewater Treatment
Aeration is a core process in biological wastewater treatment. By continuously supplying air into wastewater, sufficient dissolved oxygen is maintained to support the survival and metabolic activity of aerobic microorganisms. Through biological oxidation, organic pollutants are converted into carbon dioxide, water, and biomass, achieving effective wastewater purification.
In municipal wastewater treatment and industrial wastewater with relatively stable water quality, fine bubble aeration systems are widely used in aerobic treatment units due to their high oxygen transfer efficiency and low energy consumption.
II. Types of Fine Bubble Diffusers
Fine bubble diffusers are mainly classified into two structural types:
Disc Type Fine Bubble Diffusers
Panel Type Fine Bubble Diffusers

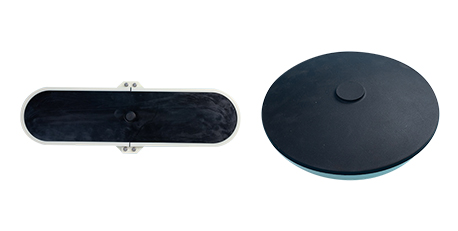

Disc diffusers have a circular shape, while panel diffusers feature a flat, elongated, skateboard-like structure. Both types generate fine bubbles through micro-perforated membranes to achieve efficient aeration.

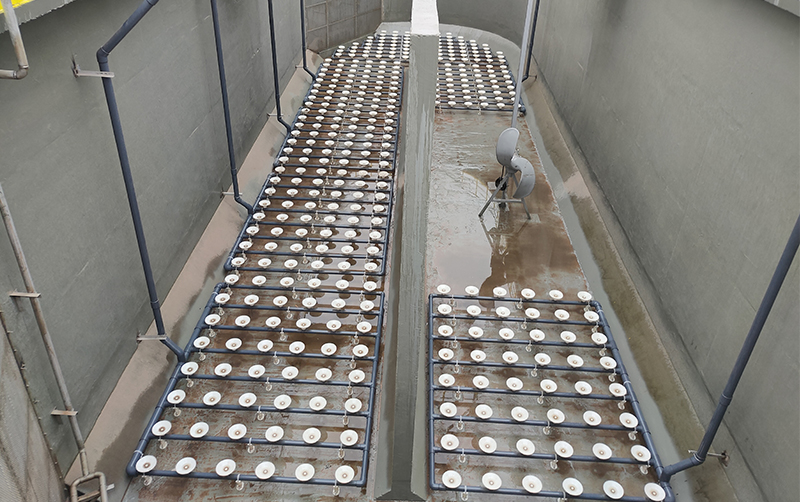

III. Structure and Working Principle of Disc Fine Bubble Diffusers
Disc fine bubble diffusers are typically designed with a slightly domed (convex) surface, and the main body is manufactured from ABS engineering plastic, offering excellent mechanical strength and corrosion resistance.
The diffuser membrane is made of EPDM rubber with anti-fouling surface properties, specially processed for long-term submerged operation.
The membrane micro-pores are manufactured using CNC precision perforation, ensuring consistent pore size and high accuracy, which results in uniform bubble distribution and stable aeration performance.
During operation, the diffuser body incorporates six internal air distribution channels. After passing through the check valve, air is evenly guided to the central area of the membrane, allowing the membrane to open smoothly with low resistance.
A threaded reverse-lock mechanical assembly is used to secure the membrane, effectively preventing loosening or detachment during long-term operation and ensuring safe, reliable performance.
When air is supplied, the membrane micro-pores automatically expand, allowing air to pass through smoothly. When aeration stops, the pores close automatically. This variable pore opening and closing mechanism effectively prevents sludge and impurities from entering the pores, reducing the risk of clogging.
In addition, a built-in check valve at the diffuser base prevents mixed liquor from backflowing into the air distribution pipes when air supply is stopped, further protecting the system from blockage.
IV. Features of Panel Fine Bubble Diffusers
Panel fine bubble diffusers feature a flat, elongated structure and are suitable for large-area installation, especially in aeration tanks requiring highly uniform air distribution. Their operating principle is the same as that of disc diffusers, relying on membrane micro-pores to generate fine bubbles.
In large tanks, panel diffusers can reduce the total number of diffusers required, simplifying installation and air piping layouts.
V. Applicable Wastewater Types
Fine bubble diffusers are suitable for wastewater with relatively clean and stable water quality, including:
Municipal wastewater
Food processing wastewater
Lightly polluted industrial wastewater
Industrial wastewater systems with effective pretreatment
VI. Summary of Technical Features
High oxygen transfer efficiency with significant energy savings
Fine bubbles and uniform air distribution
Self-opening and self-closing micro-pore design reduces clogging
Proven and widely applied structure
Suitable for long-term continuous operation
Conclusion
With their high efficiency and energy-saving performance, fine bubble diffusers play a vital role in municipal wastewater treatment and industrial wastewater with favorable water quality. Proper selection between disc and panel diffusers, combined with effective pretreatment and operation management, ensures long-term stable aeration system performance.
